ComNav Mariner X2 Class B AIS Transceiver w/built-in GPS Antenna (Second Generation) - 21410004

Mariner X2 Class B AIS Transceiver - Automatic Identification System

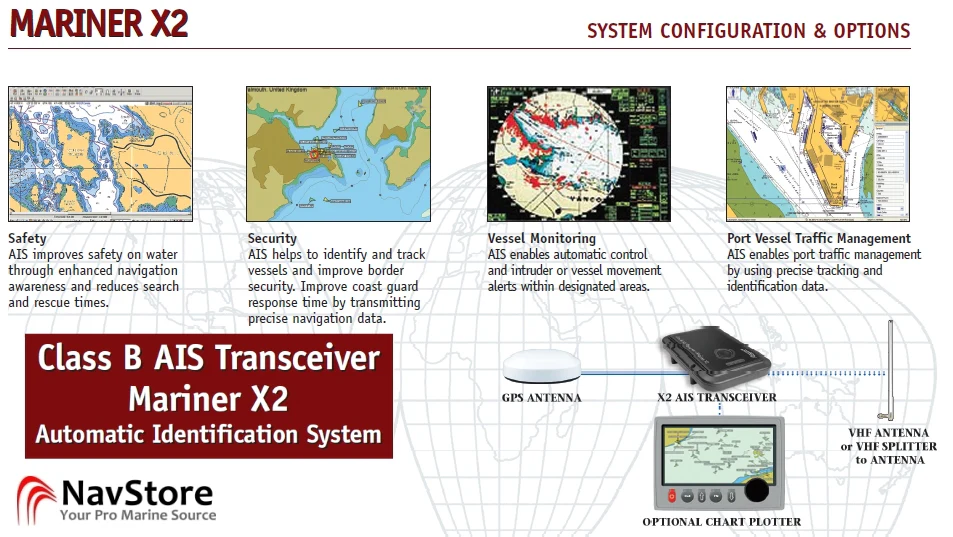

• Safety — See and be seen using your on-board chart plotter
• Display graphically AIS target overlay on standard radars and multifunction chart displays
• Wireless exchange — Navigation status between vessels and shore traffic monitoring centers
• Vessel monitoring of Class A and Class B Transmissions over standard VHF frequencies
• Allows fleet of vessels to be efficiently monitored and port traffic better managed
• Type approvals: FCC, USCG standard in USA, R&TTE Europe,and IC in Canada
• IP67 waterproof enclosure design with marine grade connectors
• Small and rugged, shock and vibration resistant
• Standard NMEA 0183, NMEA 2000® and USB interface
• Silent mode — User selectable
• Built-in 50 channel GPS receiver complemented by an integrated GPS antenna
• Four LED status indicators
• Includes Pro AIS2 software for configuration and diagnostics
• Easily upgradeable through PC software via USB
• Meets CE requirements
• 2 year warranty

ADDITIONAL FEATURES:

• Supplied with configuration and set up software
• Data display for MMSI, vessel name, call sign, vessel type, etc.
• GPS display of position, COG and SOG
• GPS diagnostics and satellite signal bar chart
• Key status indicators
• Shows Transponder software and firmware version
• Displays receiver and transmitter statistics
• Displays Class A, Class B, base station and A to N target data
• Real time display for serial data output
• Ability to log data to file

SPECIFICATIONS:

• Power: 12 to 24 VDC
• Power Consumption: 150mA @12VDC, <2W average

CONNECTIONS

• GPS Receiver: AIS internal
• 50 channels
• IEC 61108-1 compliant

DATA INTERFACES

• USB
• NMEA2000®
• IEC61162-1: NMEA0183 output, 38400baud
• IEC61162-1: NMEA0183 input, 4800baud
• Silent mode switch input

VHF TRANSCEIVER

• Transmitter x 1 / Receiver x 2
• Frequency: 156.025 to 162.025 MHz in 25KHz steps
• Output power: 2W
• Receiver sensitivity: <-110dBm @ 20% PER



USER INTERFACE

• Four LED indicators for power, transmit timeout, error and silent mode



ENVIRONMENTAL

• IPx7 rated for water ingress
• IEC 60945 ‘Protected’ category
• Operating temperature: -15°C to +55°C



COMPLIANCE: FCC, USCG, R&TTE, IC, RoHs

• Standards and Approvals
• IEC62287-1 Edition 2
• ITU-R M.1371-4
• IEC60945 Edition 4
• IEC61162-1/2 Edition 2
• IEC61108-1
• NMEA2000® Edition 2.20

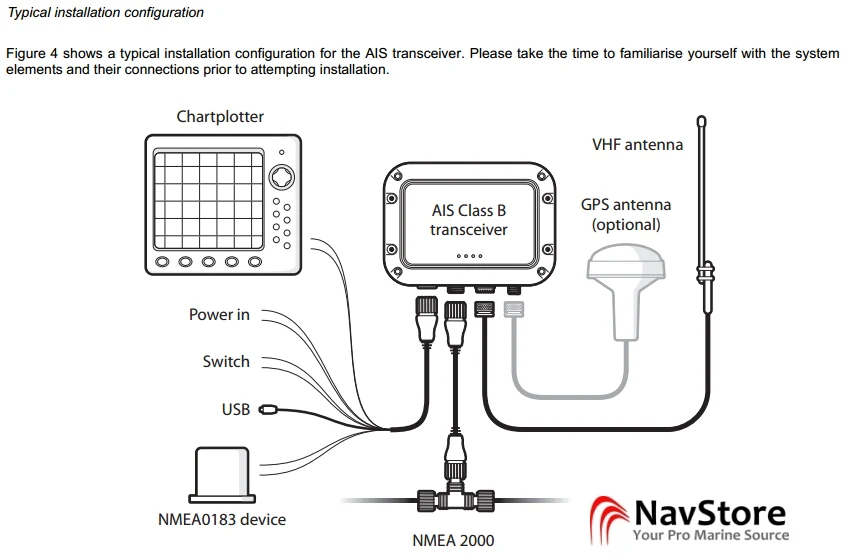

Supplied with

• 2m power and NMEA0183 data cable
• 1m USB cable
• proAIS2 configuration software
• User manual and quick start guide
• Fixing screws
