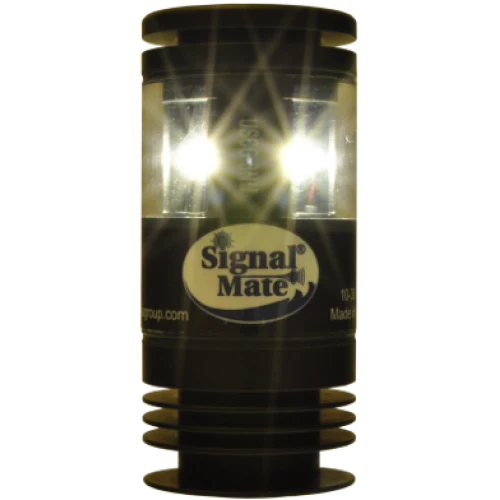

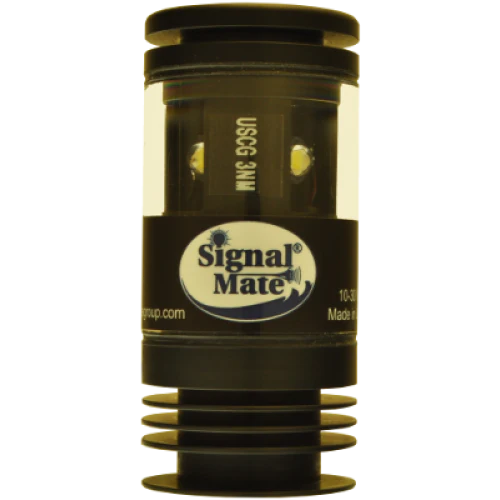

Signal Mate 3NM LED Combination Masthead (Steaming) and Anchor - 3NMMHANC
LED Masthead (Steaming) Light. Rugged and waterproof, LED 225-degree viewable. 3nm visibility for power and sailboats up to 20 meters (65ft).
LED all round 360 degrees white navigation light.
Rugged and waterproof, white 360-degree viewable. 3nm visibility for power and sailboats up to and over 50 meters (164ft). US Coast Guard approved (and used by USCG and other Military vessels since 2004). (pole adapters sold separately).
SPECIFICATIONS:
Visibility: 3NM Combination Masthead & Anchor LED Navigation Light
Model #: 3NMMHANC
Certified: USCG Certified, ABYC A-16, 72 COLREGS
Boat type: Commercial, power, sailboat vessels to 20 meters (65 feet).
Horizontal Viewing Angle: 225 & 360 degrees
Voltage Range: 10-30 VDC Current Draw: 0.180 /0.260 amps at 12 VDC
LEDs: 3 Watts: 3 Color: White
Led Driver: Constant Current
Protection: Polarity & 1500 watt surge
LED: High Brightness 50,000 hours EMI: Passive filtering.
Construction: Hard Coated Anodized Aluminum, polycarbonate lens.
Wiring: 2.5 feet, 3 wire, 20 AWG tinned, UV jacket marine wire.
Installation: 3 wire
Durability: Water & Vibration proof
Dimensions: Height 3.7” x 1.5” Diameter Weight: 6.5 oz
Mounting option: ¼” x 20 female threads on bottom of light for mounting.
Bracket Included: 360 bracket – BRKT360
Brackets Optional: Pole Adapters: 1 inch PADPT1; .75 inch PADPT75
Switch Included: Double Pole Double Throw (DPDT)
Warranty: 5 Year Limited Warranty covering materials and workmanship.
Made in USA
