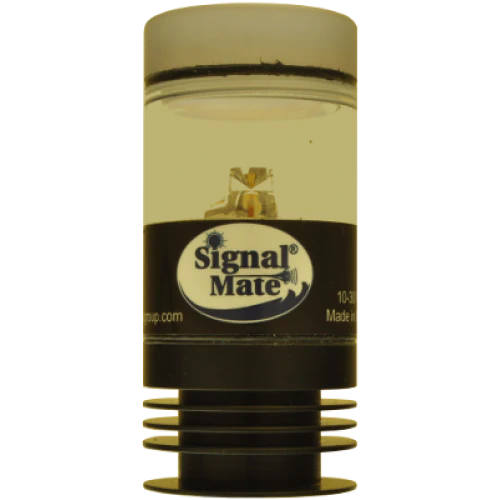

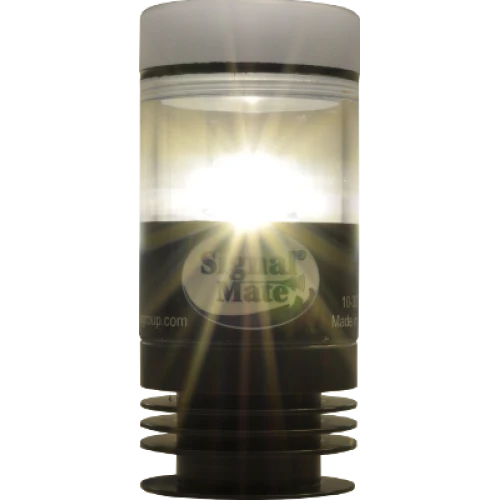

White LED All Round (360 degrees) Navigation Light Certified USCG, ABYC-A16, 72 COLREGS. 3 Nautical Mile (3NM) visibility for power, sailboats and commercial vessels up to and over 50 meters (164 feet). US Coast Guard approved and used by USCG and other Military vessels since 2006. Rugged & waterproof. 360 mounting bracket (BRKT360) included.

This item can be order with and without a photo-cell for auto day/ night operation.

With photo-cell 3NM360WP. $246.00

Without photo-cell 3NM360W. $224.00

SPECIFICATIONS:

• Visibility: 3nm
• Voltage Range: 10 to 30VDC

• Current Draw: 0.160 amps at 12VDC

• Horizontal Viewing Angle: 360 degrees

• Vertical Viewing Angle: +/- 18 degrees

• Height: 3.25 inches

• Diameter: 1.5 inches

• Weight: 9 oz

• Durability: Waterproof, submersible, designed to exceed IP67

• Warranty: 3 years

• Certifications: USCG 3nm, ABYC-A16, COLREGS 72
• 360 base included.

Drawings

Specifications

Owners Manual

Navigation Light Bracket Guide
