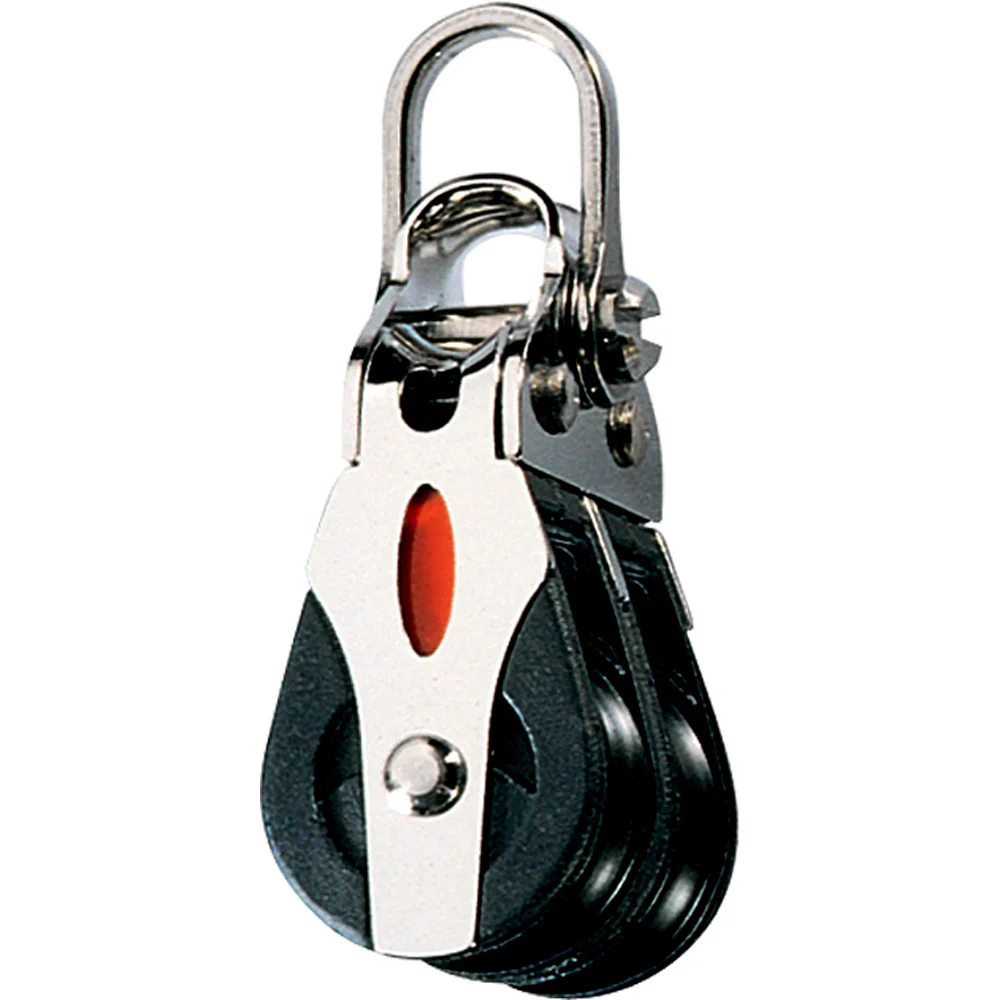

Series 20 Ball Bearing Block - Double - 2-Axis Shackle Head

Features:

• Low friction

• High static and dynamic load capacity

• Lightweight

• Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction

• Two-Way head can be fixed at 0° or 90°

Applications:

• Dinghy control lines

• Dinghy vangs

• Cunninghams

• Traveller controls

Materials:

• Stainless steel ball bearings

• UV Stabilized Acetal sheave

• Grade 316 stainless steel load strap and head fitting

• Impact and UV resistant, fiber reinforced Nylon cheeks

Specifications:
Sheave Ø: 20mm(3/4")
Max. Rope Ø: 6mm(1/4")
PinØ: 4mm(5/32")
M.W.L.: 350kg(770lbs)
B. L.: 700kg(1,540lbs)
Weight: 42g(1.5oz)
