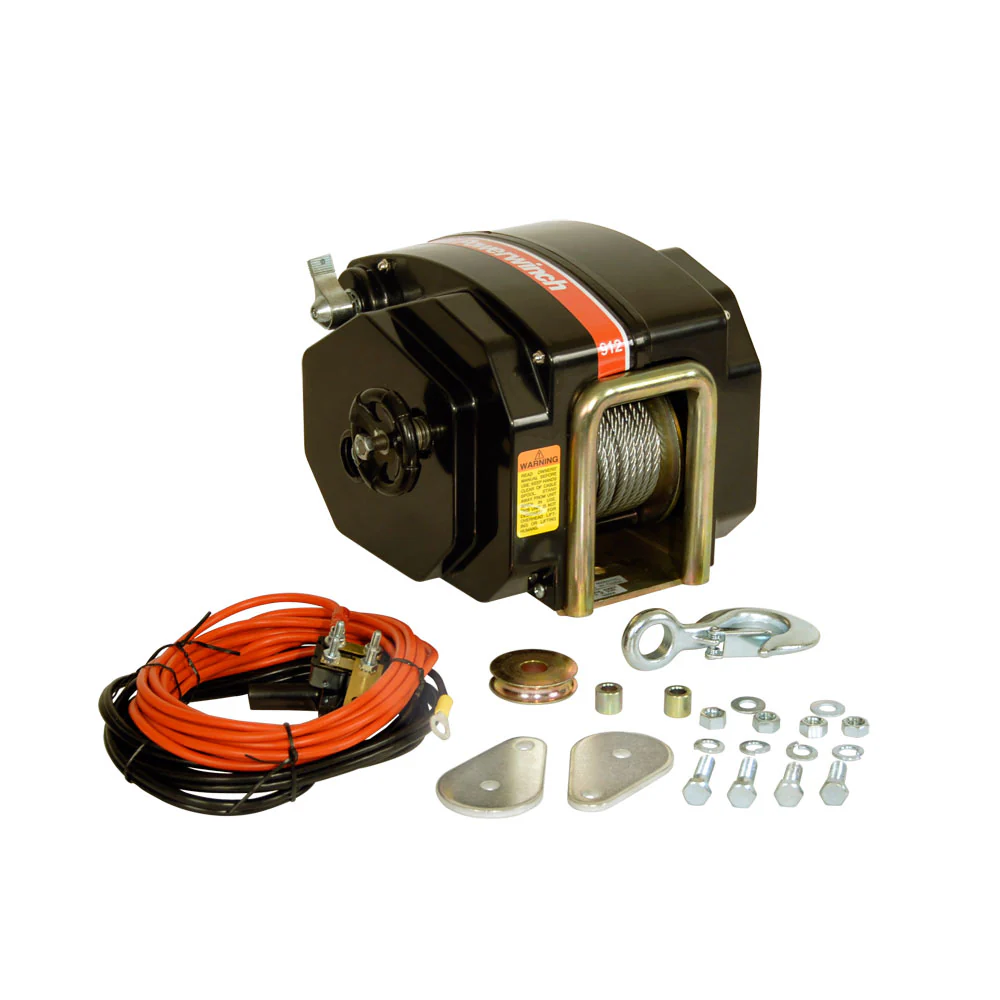

12v Electric Trailer Winch

The 912 and 712 Trailer Winches are well established with solid, reliable reputations. They feature smooth power-in/free-wheel out action. You can use a pulley or block at the bow eye to double your pulling power You can get more strength out of your trailer winch, but it slows retrieval speed 50%.

• Remote power-in/freewheel-out operation
• 60 amp standard wiring harness
• Pulley block for double line applications
• One year limited warranty

Model 912

• 30' suggested max boat length
• Max. boat weight of 11,500 lbs
• 4000 lb vertical lift capacity (single line) or double pull/line capacity 7500 lbs. (Not to be considered or used as a hoist)

Specifications

• Max. Boat Weight: 11500
• Line Speed: 8 FPM
• Vertical Lift Capacity: 4000 lbs
• Remote Control: No
• Light: No
• Double Line Capacity: 7500 lbs
• Gear Ratio: 450:1
• Power Source: 12V
• Circuit Breaker: 60 amp
• Unit Weight: 35 lbs
• Depth: 10"
• Width; 10"
• Height: 8"
• Cable Length and Diameter: 40' x 7/32"

Specifications:

• Pull Strength (lbs): 4000 lbs
• Manual/Electric: Electric
• Gear Ratio: 450:1
• Box Dimensions: 9"H x 11"W x 15"L WT: 34.5 lbs
• UPC: 810123840090

Quick Guide (pdf)
Owner's Manual (pdf)
