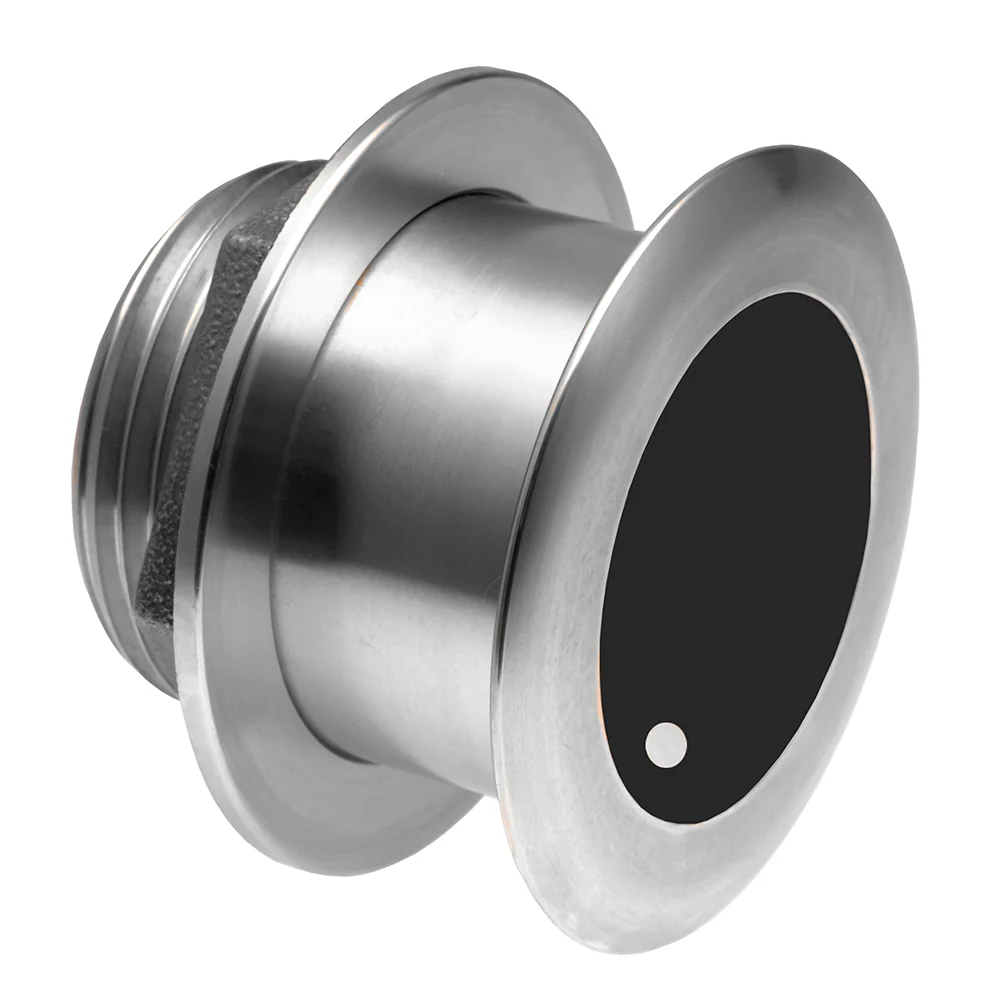

SS175H-W/0 Stainless Steel Thru-Hull Transducer - 0° - 9-Pin

The SS175H-W is a stainless steel, thru-hull CHIRP transducer, ideal for sportfishing and commercial vessels up to 8M (25') in size. This single-channel transducer offers High CHIRP combined with a wide beam for the best resolution and coverage in shallower depths.

Features:

• 130-210 kHz High CHIRP with wide 25° beam for excellent fish targets
• Up to 310M (1000') range with High CHIRP
• 1 internal broadband ceramic
• Thru-hull with stainless steel housing
• Suitable for fiberglass and wood hulls
• Ideal for sportfishing and commercial vessels up to 8M (25')
• Recommended for use with Simrad NSSevo3 Lowrance HDS Gen3 multifunction displays


Specifications:

• Temperature: Yes
• Pins: 9
• Mounting Style: Thru-Hull
• Imaging: Standard
• Chirp: High Wide
• Cable Length (Feet): 33'
• Speed Included: No
• Box Dimensions: 8"H x 10"W x 11"L WT: 10.7 lbs
• UPC: 9420024161913
