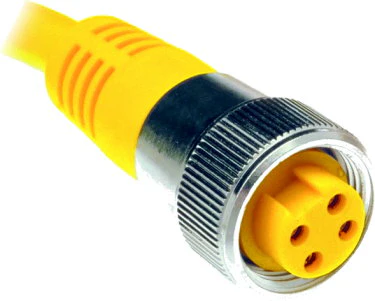

Maretron NMEA 2000 Mini Power Cord - Female to Pigtail - 1 meter NM4P-01

FEATURES

• Molded Body Mat/Color: Thermoplastic PUR/Yellow
• Outer Jacket Mat/Color: PVC/Yellow
• Contact Carrier Mat/Color: Thermoplastic PUR/Yellow
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Mat/Plating: Brass/Nickel
• Conductor Insulation Mat: PVC

ELECTRICAL:

• Conductors: 4x16 (1.29mm) AWG
• Current Rating: 9.0 Amps
• Voltage Rating: 600 V

ENVIRONMENTAL:

• Protection Class: IEC IP67, NEMA 1,3,4,6P
• Temperature Range: -40°C to 105°C (-40°F to 221°F)

APPROVALS:

• NMEA: NMEA 2000® APPROVED
• IEC: IEC 61162-3
