Maretron NMEA 2000 Mid Bulk Cable (no spool) DB1

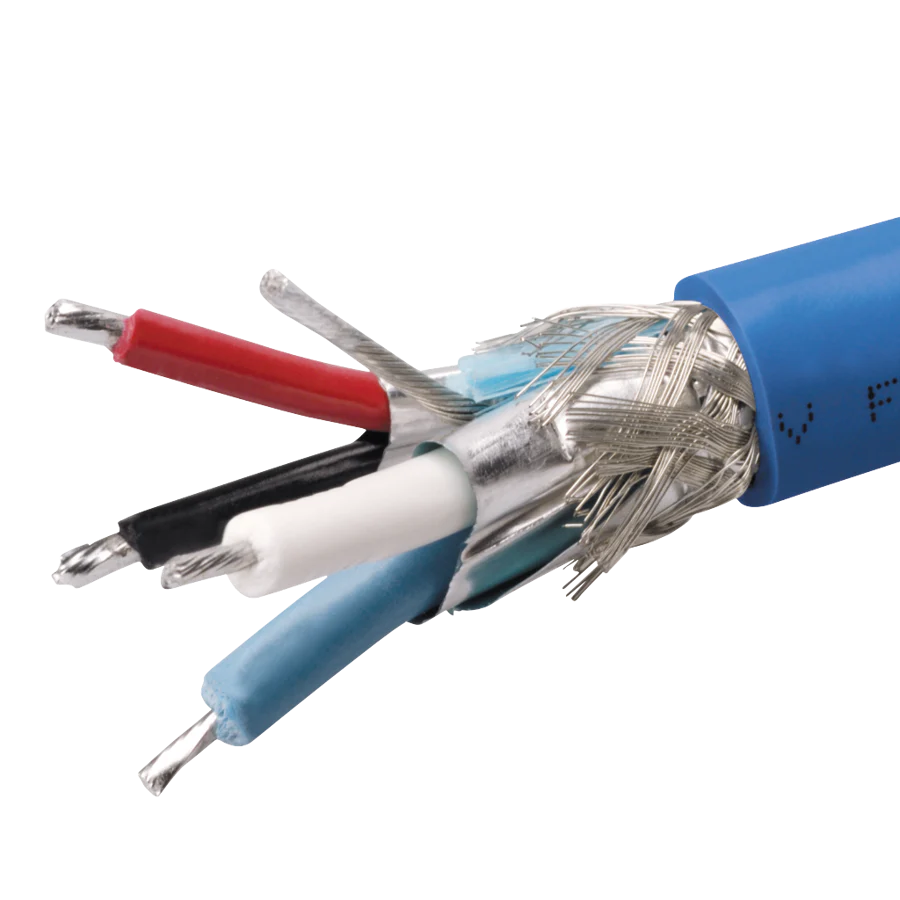

Product image 1

Maretron NMEA 2000 Mid Bulk Cable (no spool) DB1

Maretron NMEA 2000 Mid Bulk Cable (no spool) DB1

Mid bulk cable is primarily used as drop cable, but it can also be used at the trunk line depending on network power requirements. Bulk cable with field-attachable connectors allows for maximum flexibility as cables can be made on the job to exact lengths.

• Meets and exceeds NMEA 2000® specifications for the highest reliability
• Used with field-attachable connectors to build exact length cables at the job site
• Optimized for voltage drop sensitive networks (long runs)because power pair wires have half the resistance of Micro cable

Specifications

Overall

  • Outer Jacket Mat/Color: PVC/Gray - DG1 PVC/Blue - DB1
  • Insulation Material: PE (data wires), PVC (power wires)
  • Construction: 2x16 (1.29mm) AWG, 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
  • Shielding (3 levels): Foil (overall), Foil (power pair), Foil (data pair)

    Power Pair
  • Wire: 2x16 (1.29mm) AWG
  • Resistance/Conductor: 4.1 Ohms/1000 ft max
  • Max Amperage: 14 Amps
  • Color Code: Red/Black

    Data Pair
  • Wire: 2x20 (0.81mm) (AWG)
  • Characteristic Impedance: 120 Ohms +/- 10%
  • Capacitance: 10.75 pF/ft
  • Color Code: White/Blue

    Approvals
  • UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
  • NMEA: NMEA 2000 Approved
  • IEC: IEC-61162-3







Select Mid Bulk Cable Blue
From $5.57
Maretron NMEA 2000 Mid Bulk Cable (no spool) DB1—
$5.57
