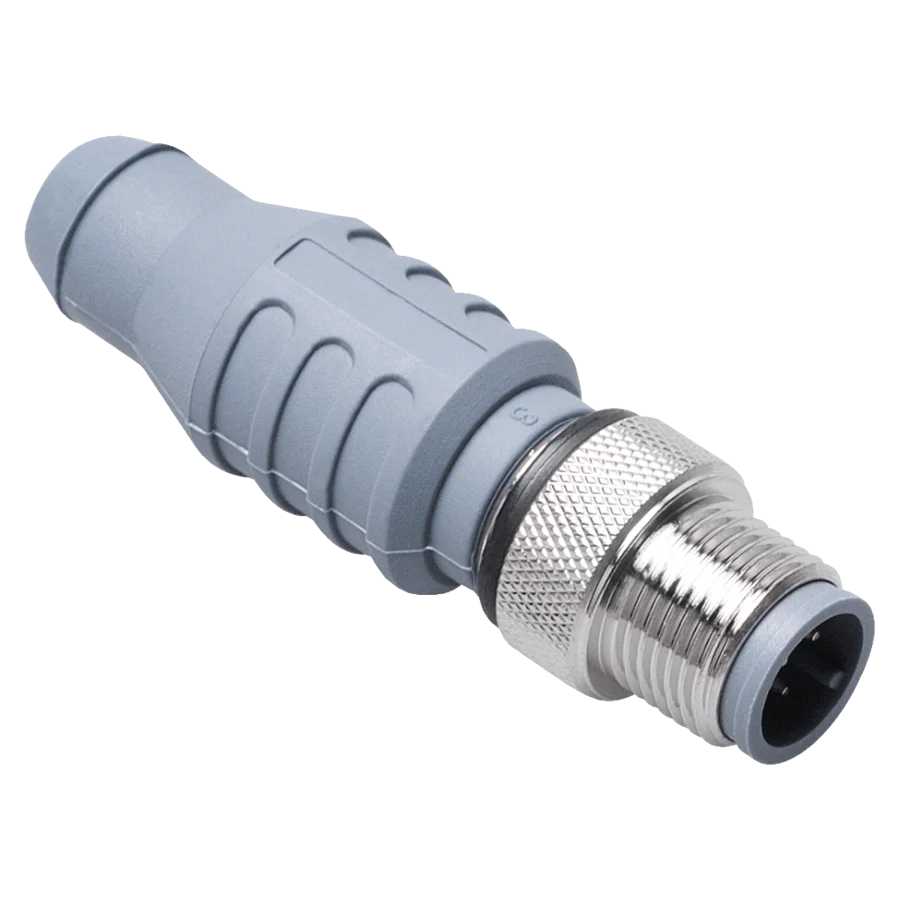

Micro Termination Resistor (Male)

Two termination resistors are required on every NMEA 2000 network, one on each end of the trunk line. Normally, a male termination is used since male pins tend to point back to the power source. In cases where the gender is reversed, a female terminator may be required.

The inline terminator is used where the network is terminated at a product, for example a GPS or weather station at the top of a mast.

• Screw terminal connector for positive connections

• Termination resistors are used to terminate both ends of the trunk line

FEATURES:

• Screw terminal connector for positive connections
• Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
• Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Mat/Plating: Brass/Nickel

ELECTRICAL:

• Rated Voltage: 10-30 V DC
• Internal Resistor: 120 Ohms (1/2 W)

ENVIRONMENTAL:

• Protection Class: IEC IP68, NEMA 1,3,4,6P
• APPROVALS NMEA: NMEA 2000® APPROVED
• IEC: IEC 61162-3
