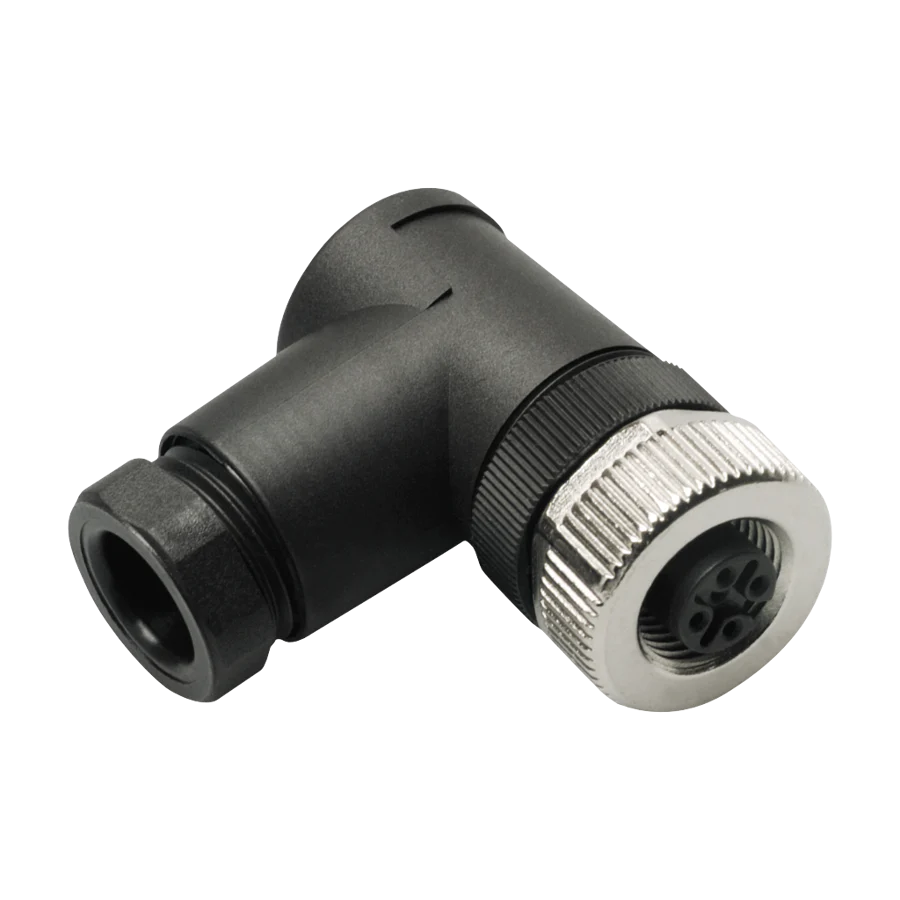

Maretron NMEA 2000 Micro/Mid Field Female Attachable Connector (FA-CF-90)

Features

• Housing Mat/Plating: Nylon/Black
• Contact Mat/Plating: Brass/Optaloy
• Coupling Nut Mat/Plating: Brass/Nickel
• Maximum Wire Size: 18 (1.02mm) AWG
• Cable Grip Range: 6-8 mm

ELECTRICAL:

• Rated Current: 4.0 Amps
• Rated Voltage: 30 V AC/ 36 V DC

ENVIRONMENTAL:

• Protection Class: IEC IP67
• Temperature Range: -40°c TO 85°C (-40°F to 185°F)

APPROVALS:

• NMEA: NMEA 2000® Approved
• Features
  • Housing Mat/Plating: Nylon/Black
  • Contact Mat/Plating: Brass/Optaloy
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Maximum Wire Size: 18 (1.02mm) AWG
  • Cable Grip Range: 6-8 mm




  ELECTRICAL:




  • Rated Current: 4.0 Amps
  • Rated Voltage: 30 V AC/ 36 V DC




  ENVIRONMENTAL:




  • Protection Class: IEC IP67
  • Temperature Range: -40°c TO 85°C (-40°F to 185°F)




  APPROVALS:

  • NMEA: NMEA 2000® Approved
  • IEC: IEC-61162-3
