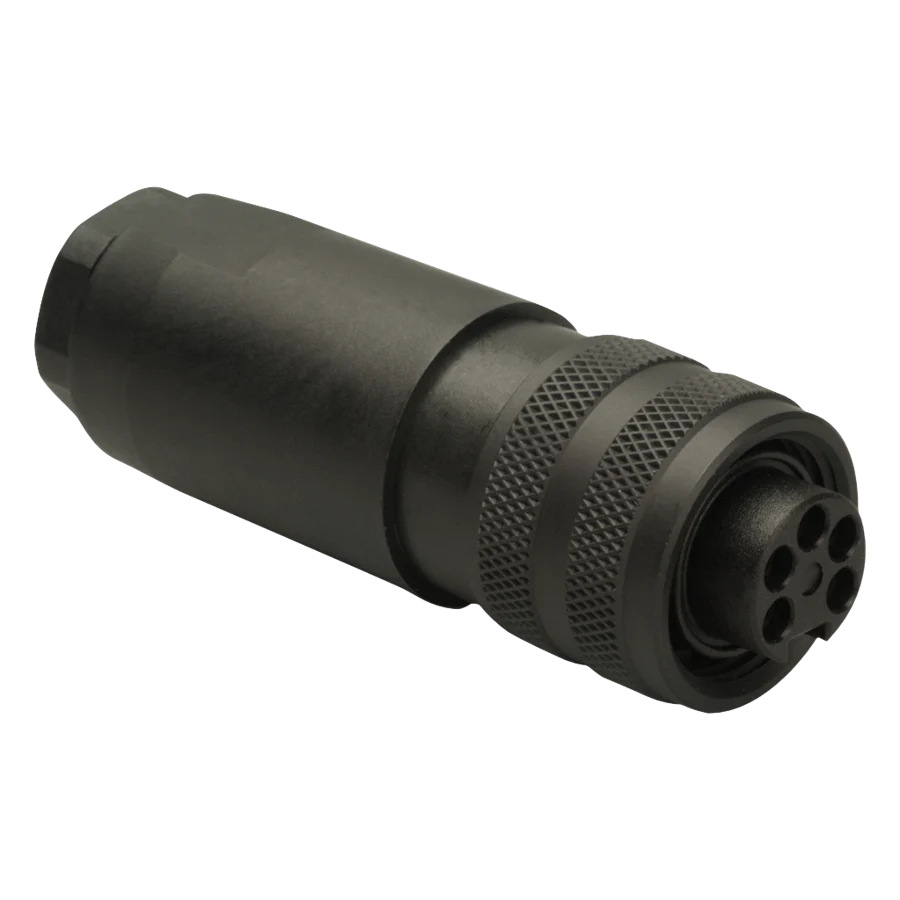

Maretron Mini Field Attachable Connector (Female) FA-NF-ST

Field-attachable connectors allow you to make field connections to bulk cable. The color-coded screw terminals match the individual wire colors found within the bulk cables for error-free field installation.

• Color-coded screw terminators make for error-free field installation

• Rugged housing material designed to withstand harsh marine environments

Features:

• Housing Mat/Color: Glass Filled Nylon/Black
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Material: Anodized Aluminum
• Maximum Wire Size: 16 (1.29mm) AWG
• Termination Method: Screw Terminal

ELECTRICAL:

• Rated Current: 9.0 Amps
• Rated Voltage: 250 Volts

ENVIRONMENTAL:

• Protection Class: IEC IP67
• Temperature Range: -40°c TO 85°C (-40°F to 185°F)
• APPROVALS NMEA: NMEA 2000® Approved
• IEC: IEC-61162-3
