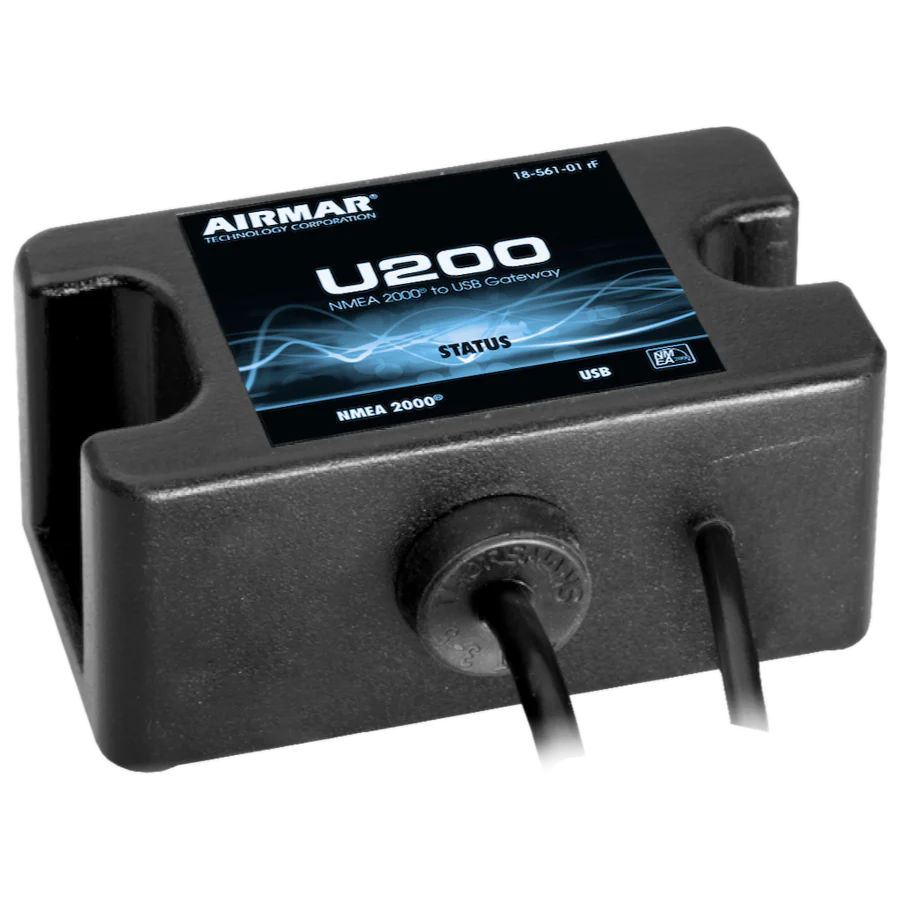

Airmar WeatherStation U200 N2K/USB Interface/Gateway - WS2-USB
Airmar WeatherStation U200 N2K/USB Interface/Gateway  - WS2-USB
Model 33-727-01
Airmar’s converter allows the NMEA2000® data coming from the PB and WX series WeatherStations®, and G2183, H2183, and GH2183 sensors to be displayed on a PC via an available USB port. This will allow the sensor’s data to be viewed in the WeatherCaster™ PC Software or other PC based navigation software.
Â
USB Gateway NMEA 2000® to USB
Â
Plug-and-Play Interface
Â

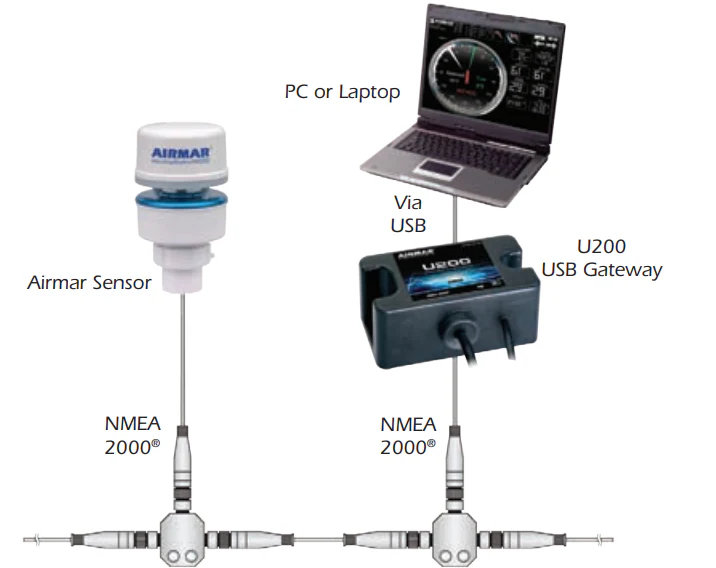

The U200 Gateway provides the ability to interface with NMEA 2000® devices on a NMEA 2000 bus using a Personal Computer (PC). With installed sensors a simple plug-and-play installation allows GPS data, Speed-Over-Ground (SOG), Course-Over-Ground (COG), vessel heading, depth, speed, water temperature, weather data, and more to be displayed on your PC. Airmar’s WeatherCaster PC software comes standard with the U200 and acts as both a user interface to display the network data and also as a network analyzer tool. All NMEA 2000 network activity on the bus can be viewed and logged as needed.
Features
•Converts listed NMEA 2000® PGNs to USB format
• Plug-and-play connectivity from a NMEA 2000 network backbone to a PC
• For Airmar NMEA 2000 Sensors and other Certified NMEA 2000 Sensors: GPS Receivers, Heading Sensors, and Smart™, Depth, Speed, and Temperature Sensors
•Airmar WeatherCaster™ Software included
• Baud Rate: 115,200
•Voltage: Powered by USB connection (5 V)
Â

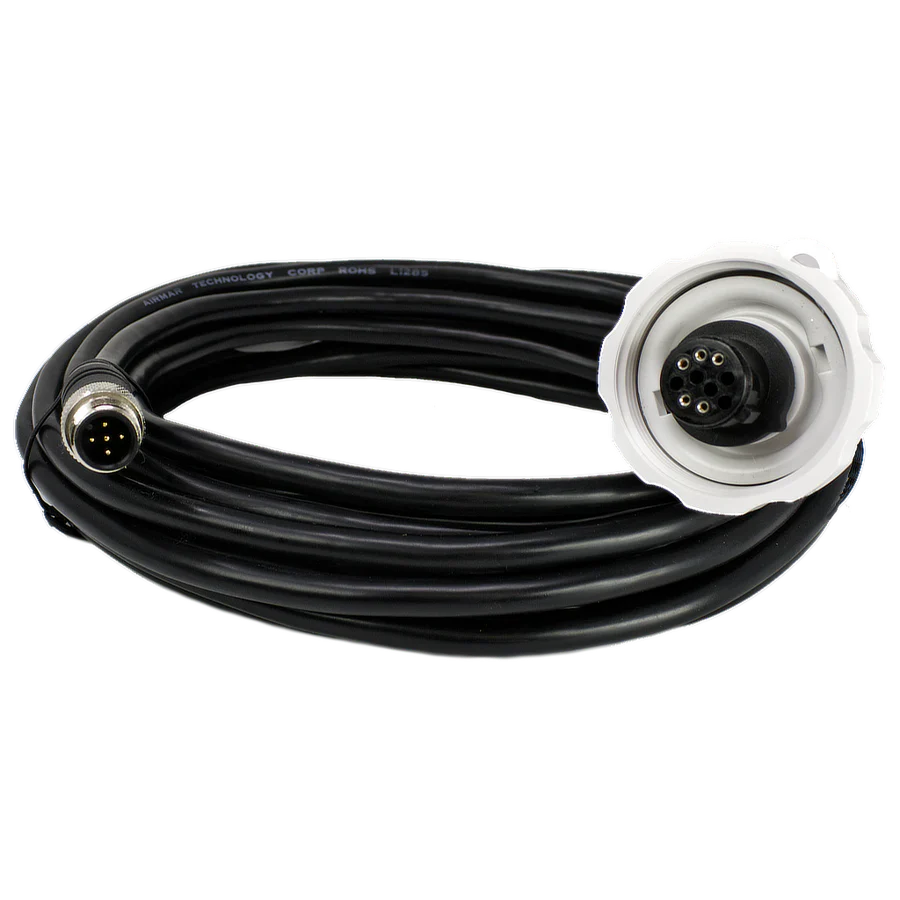

Included in the box is a 1.8 m (6’) USB cable and a 6 m (20’) NMEA cable and WeatherCaster PC Software.
Â

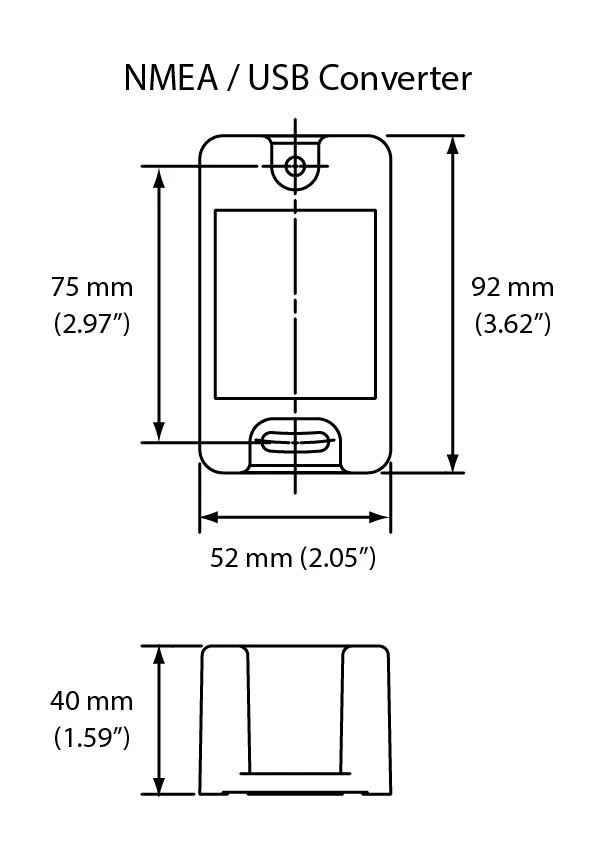

Mounting Dimensions: 76 mm x 51 mm (3 5/8” x 2”)
Â
NMEA 2000® Supported PGNs
059392.......ISO Acknowledgment
059904.......ISO Request
060160.......ISO Transport Protocol, Data Transfer
060416....... Transport Protocol, Connection Management
060928.......ISO Address Claim
065240.......ISO Commanded Address
126208.......Acknowledge Group Function
126208.......NMEA Complex Command Group Function
126464....... PGN List—Transmit and Receive PGNs Group
126992....... System Time
126996....... Product Information
126998.......Configuration Information
127250.......Vessel Heading
127251.......Rate of Turn
127257.......Attitude
127258.......Magnetic Variation
128259....... Speed
128267.......Water Depth
128275.......Distance Log
129025....... Position, Rapid Update
129026.......COG and SOG, Rapid Update
129029.......GPS Position Data
129033....... Time and Date
129044.......Datum
129538.......GNSS Control Status
129539.......GNSS DOPs
129540.......GNSS Sats in View
129541.......GPS Almanac Data
130306.......Wind Data
130310.......Environmental Parameters
130311.......Environmental Parameters
130323.......Meteorological Station Data
059392.......ISO Acknowledgment
059904.......ISO Request
060160.......ISO Transport Protocol, Data Transfer
060416....... Transport Protocol, Connection Management
060928.......ISO Address Claim
065240.......ISO Commanded Address
126208.......Acknowledge Group Function
126208.......NMEA Complex Command Group Function
126464....... PGN List—Transmit and Receive PGNs Group
126992....... System Time
126996....... Product Information
126998.......Configuration Information
127250.......Vessel Heading
127251.......Rate of Turn
127257.......Attitude
127258.......Magnetic Variation
128259....... Speed
128267.......Water Depth
128275.......Distance Log
129025....... Position, Rapid Update
129026.......COG and SOG, Rapid Update
129029.......GPS Position Data
129033....... Time and Date
129044.......Datum
129538.......GNSS Control Status
129539.......GNSS DOPs
129540.......GNSS Sats in View
129541.......GPS Almanac Data
130306.......Wind Data
130310.......Environmental Parameters
130311.......Environmental Parameters
130323.......Meteorological Station Data
